ANB4 Spectrum analyser 9kHz/1,5gHz



Bestel
The add to cart button will appear once you select the values above
Detail

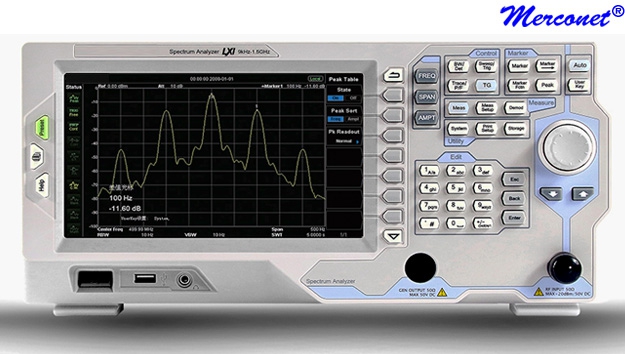

The ANB4 is a portable spectrum analyzer configured with numeric keyboard, high-resolution color LCD display and various remote communication interfaces, ANB4 can be used for benchtop or field apps in RF and wireless testing and production. In various fields, such as education, company research and development as well as industrial manufacture. The ANB4 spectrum analyzer redefines the product category by setting new standards for performance. The ANB4 spectrum analyzer offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels, it also distinguishes between signals with a frequency difference as little as 100 Hz. The ANB4 includes a wide range of standard functions including AM/FM demodulation and an preamplifier.

Kenmerk
  • 9 kHz to 1.5 GHz frequency range
  • <-135 dBm (typical) Displayed Average Noise Level (DANL)
  • <-80 dBc/Hz @10 kHz offset Phase Noise
  • Level Measurement Uncertainty: <1.5 dB (nom.)
  • Minimum Resolution Bandwidth (RBW): 10 Hz
  • 8 inch (800×480 pixels) high-definition display with clear, vivid, and easy-to-use graphical interface
  • AM/FM Demodulation Function
Specificatie
Frequency
Frequency range: 9 kHz to 1.5 GHz
Frequency resolution: 1 Hz

Internal Reference Frequency
Reference frequency: 10 MHz
Accuracy: ± [ (time since last calibration × aging rate) + temperature stability + calibration accuracy]
Initial calibration accuracy: <1 ppm
Temperature stability:   0°C to 50°C, reference to 25°C
  <2 ppm
Aging rate: <2 ppm/year

Frequency Readout Accuracy
Marker resolution: span/ (number of sweep points - 1)
Marker uncertainty: ±(frequency indication × reference frequency accuracy + 1% × span + 10% × resolution bandwidth + marker resolution)

Frequency Counter
Resolution:  1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz
Uncertainty: ±(frequency indication × reference frequency accuracy + counter resolution)

Frequency Span
Range: 0 Hz, 100 Hz to maximum frequency of instrument
Uncertainty: ± span/ (number of sweep points - 1)

SSB Phase Noise: 20°Cto 30°C, fc = 1 GHz
Carrier offset 10 kHz: <-80 dBc/Hz
Carrier offset 100 kHz: <-100 dBc/Hz (typ.)

Residual FM
Residual FM: 20°C to 30°C, RBW = VBW = 1 kHz
  <50 Hz (nom.)

Bandwidths
Resolution bandwidth (-3 dB): Set "Auto SWT" to "Accy"
  10 Hz to 1 MHz, in 1-3-10 sequence
RBW uncertainty: <5% (nom.)
Resolution filter shape factor (60 dB : 3 dB): <5 (nom.)
Video bandwidth (-3 dB): 1 Hz to 3 MHz, in 1-3-10 sequence

Amplitude
Measurement Range: fc ≥ 10 MHz
  DANL to +20 dBm

Maximum Input Level
DC voltage: 50 V
CW RF power: attenuation = 30 dB
  +20 dBm (100 mW)
Max. damage level[1]: +30 dBm (1 W)

Displayed Average Noise Level (DANL)
Frequency:  attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, tracking generator off, 20°C to 30°C, input impendence = 50 Ω
PA off 100 kHz to 1 MHz: <-90 dBm, <-110 dBm (typ.)
PA off 1 MHz to 1.5 GHz:  <-110 dBm + 6 × (f/1 GHz) dB, <-115 dBm (typ.)
PA on 100 kHz to 1 MHz: <-110 dBm, <-130 dBm (typ.)
PA on 1 MHz to 1.5 GHz: <-130 dBm + 6 × (f/1 GHz) dB, <-135 dBm (typ.)

Displayed Average Noise Level (DANL) (Normalized to 1Hz)
Frequency: attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, tracking generator off, normalized to 1Hz, 20°C to 30°C, input impendence = 50 Ω
PA off 100 kHz to 1 MHz: <-110 dBm, <-130 dBm (typ.)
PA off 1 MHz to 5 MHz:  <-130 dBm + 6 × (f/1 GHz) dB, <-135 dBm (typ.)
PA off 5 MHz to 1.5 GHz: <-130 dBm + 6 × (f/1 GHz) dB, <-135 dBm (typ.)
PA on 100 kHz to 1 MHz: <-130 dBm, <-150 dBm (typ.)
PA on 1 MHz to 5 MHz: <-150 dBm + 6 × (f/1 GHz) dB, <-155 dBm (typ.)
PA on 5 MHz to 1.5 GHz: <-150 dBm + 6 × (f/1 GHz) dB, <-155 dBm (typ.)

Level Display
Logarithmic level axis: 1 dB to 200 dB
Linear level axis: 0 to reference level
Number of display points: 601
Number of traces: 3 + math trace
Trace detectors:  normal, positive-peak, negative-peak, sample, RMS, voltage average
Trace functions:  clear write, max hold, min hold, average, view, blank
Units of level axis: dBm, dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W

Frequency Response
Frequency response: fc ≥ 100 kHz, attenuation = 10 dB, relative to 50 MHz, 20°C to 30°C
PA off 100 kHz to 1.5 GHz: <0.7 dB
  fc ≥ 1 MHz, attenuation = 10 dB, relative to 50 MHz, 20°C to 30°C
PA on 100 kHz to 1.5 GHz: <1.0 dB

Input Attenuation Switching Uncertainty
Setting range: 0 to 30 dB, in 1 dB step
Switching uncertainty: fc = 50 MHz, relative to 10 dB, 20°C to 30°C
  < 0.5 dB

Absolute Amplitude Uncertainty
Uncertainty:  fc = 50 MHz, peak detector, preamplifier off, attenuation = 10 dB, input signal level = -10 dBm, 20°C to 30°C
  <0.4 dB

RBW Switching Uncertainty
Uncertainty:    relative to 1 kHz RBW
  <0.1 dB
Reference Level
Range: -100 dBm to +20 dBm, in 1 dB step
Resolution: log scale: 0.01 dB
  linear scale: 4 digits

Preamplifier
Gain 100 kHz to 1.5 GHz: 20 dB (nom.)

Level Measurement Uncertainty
Level Measurement Uncertainty: 95% confidence level, S/N > 20 dB, RBW = VBW = 1 kHz, preamplifier off, attenuation = 10 dB, -50 dBm < input level ≤ 0 dBm, fc > 10 MHz, 20°C to 30°C
Level measurement uncertainty: <1.5 dB (nom.)

RF Input VSWR
VSWR 300 kHz to 1.5 GHz: <1.5 (nom.)

Distortion
Second Harmonic Intercept
Second harmonic intercept (SHI): fc ≥ 50 MHz, input signal level = -20 dBm, attenuation = 10 dB
  +40 dBm

Third-order Intercept
Third-order intercept (TOI): fc ≥ 50 MHz, two -20 dBm tones at input mixer spaced by 200 kHz, attenuation = 10 dB
  +10 dBm

1dB Gain Compression
1dB compression of input mixer (P1dB): fc ≥ 50 MHz, attenuation = 0 dB
  >0 dBm

Spurious Response
Spurious Response:  input terminated 50 Ω, attenuation = 0 dB, 20°C to 30°C
  <-88 dBm (typ.)
Intermediate frequency: <-60 dBc
System related sidebands:  referenced to local oscillators, referenced to A/D conversion, referenced to subharmonic of first LO, referenced to harmonic of first LO
  <-60 dBc
Input related spurious:  mixer level = -30 dBm
  <-60 dBc
NOTE: [1] Except the internal local oscillator (1820 MHz) and its harmonics.

Sweep
Sweep time: span ≥ 100 Hz: 10 ms to 1500 s
  zero span: 20 μs to 1500 s
Sweep time uncertainty:  span ≥ 100 Hz: 5% (nom.)
  zero span (sweep time setting value > 1 ms): 5% (nom.)
Sweep mode:  continuous, single

Trigger
Trigger source: free run, video, external
External trigger level:  5 V TTL level

Input /Output
Front Panel Connectors
RF input:impedance:  50 Ω (nom.)
  connector: N female
Tracking generator output:impedance: 50 Ω (nom.)
  connector: N female

Internal/ External Reference
Internal reference: frequency: 10 MHz
  output level: +3 dBm to +10 dBm, +8 dBm (typ.)
  impedance: 50 Ω (nom.)
  connector: BNC female
External reference: frequency: 10 MHz ± 5 ppm
  input level: 0 dBm to +10 dBm
  impedance: 50 Ω (nom.)
  connector: BNC female

External Trigger Input
External Trigger Input: impedance: 1 kΩ (nom.)
  connector: BNC female

Communication Interface
USB host: connector: A
  plug protocol: version2.0
USB device: connector: B plug
  protocol: version2.0
LAN: LXI core 2011 device: 10/100Base, RJ-45

General Specifications
Display: TFT LCD
Resolution: 800 x 480 pixels
Size: 8 inch
Colors: 64k

Printer Supported
Protocol: PictBridge

Mass Memory
Mass Memory: flash disk (internal), USB storage device (not supplied)

Power Supply
Input voltage range, AC: 100 V to 240 V (nom.)
AC supply frequency: 45 Hz to 440 Hz
Power consumption: 35 W (typ.), max. 50 W with all options

Environmental
Operating temperature range: 0°C to 50°C
Storage temperature range: -20°C to 70°C
Humidity: 0°C to 30°C (≤ 95% rel. humidity)
  30°C to 40°C (≤ 75% rel. humidity)
Altitude operating height: up to 3,000m

Electromagnetic Compatibility and Safety
EMC in line with EN61326-1:2006:         IEC 61000-4-2:2001: ± 4.0 kV (contact discharge), ± 4.0 kV (air discharge)
  IEC 61000-4-3:2002: 3 V/m (80 MHz to 1 GHz), 3 V/m (1.4 GHz to 2 GHz), 1 V/m (2.0 GHz to 2.7 GHz)
  IEC 61000-4-4:2004: 1 kV power lines
  IEC 61000-4-5:2001: 0.5 kV (phase to neutral), 0.5 kV (phase to PE), 1 kV (neutral to PE)
  IEC 61000-4-6:2003: 3 V, 0.15 to 80 MHz
  IEC 61000-4-11:2004: voltage dip: 0% UT during half cycle, 0% UT during 1 cycle, 70% UT during 25 cycles
short interruption: 0% UT during 250 cycles
Electrical safety: in line with UL 61010-1:2012, CAN/CSA-C22.2 No. 61010-1-12, EN 61010-1:2010
Dimensions:  361.6 mm × 178.8 mm × 128 mm (W x H x D)
Weight: 4.25 kilogram
Goedkeuring: CE, RoHS en WEEE
