AHG9 Fusion splicer clad FTTH



Bestel
The add to cart button will appear once you select the values above
Detail

The AHG9 is Optical Fiber Fusion Splicer with a big screen LCD display employs a high-speed image processing technology and special precision positioning technology, which makes the whole splicing process operated automatically within 10 seconds. It can be used widely in different work related to optical fiber cable engineering or for teaching and scientific research in institutes and colleges. Its small size and light weight especially make it suitable for field work.

Kenmerk
  • Fiber core can be display clearly
  • Applicable Fiber: SM, MM, NZ-DS, EDF, Pigtail, Rubber-insulated wire series
  • Fiber Holder: only one fiber holder and no need to change(Patented Feature)
  • USB port, store 6000 results, 10s splicing, 30s heating
  • Auto check quality of cleaved end face
  • Auto select best splicing program
  • Single X or Y view and X & Y view simultaneously
  • Built-in light for placing fiber
  • 9 seconds splice time and 30 seconds heat time
  • Small bulk and light weigh
  • 5.7 inch color LCD monitor with clear digital image display
  • Simple Operation menu
  • Real-time battery power monitoring
  • Long continuously using time
Specificatie
Application: SM, MM, NZ-DS, EDF, Pigtail, Rubber-insulated wire series
Optical fiber outer diameter: 125 um (standard)
  coating layer outer diameter: 0.2- 1.5 mm
Alignment: Core Align or Envelope Align
Image Processing: Digital-Image Processing
Typical Splice Loss: 0.02 dB (SM Fiber)
  0.01 dB (MM Fiber)
Typical Splice Time: 10 seconds
Typical Heat Time: 30 seconds (It can be adjusted)
Splice Mode: 53 factory modes
  40 user modes
Heat Mode: 9 factory Models 24 user Mode (Built-in heater)
Fiber Magnification: 300 times (X Axis or Y Axis);
  150 times (X Axis and Y Axis)
Battery Standby Time: Splicing 150 times after a full charge
Proof Test: 2 N
Continuous Loss Storage: 6000 groups of the latest results, each 20 kinds of parameters
Display: 5.7-inch LCD
USB Interface: connected to computers for data transmission, storage or print
VGA Interface: used to connect to computers or LCD TV
LAN Port: updated-version software for remote control
Working Humidity: < 95% RH (no condensation)
Storing Humidity: 0-95%
Working Altitude: 0-5000 meters
Highest Wind Speed: 15 m/s
Working Temperature: -10°C to 50°C
Storage Temperature: -40°C to 60°C
Power Supply: AC 100-240 V (Power Adapter); built-in Lithium Battery
Power Consumption: 25W
Size: 150mm(L) x 150mm(W) x 150mm (H)
Weight: 3.2 Kg
Goedkeuring: CE, RoHS en WEEE

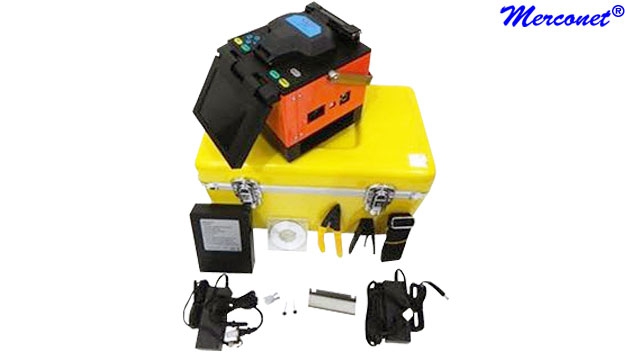

Content
- AHG9 Fusion splicer
- AFC4 Koffer AHG9
- AFC6 Voeding AHG9
- AFC7 Voedingskabel AHG9
- AFC8 Pincet AHG9
- AFD0 Afkoelbak AHG9
- AFC9 Schoonmaak kwast AHG9
- AFD1 Display hoes AHG9
- AFD2 Snijmes AHG9
- GB10 Gebruiksaanwijzing
Optie
- AFC5 Electrodes AHG9
- AFD6 Certificatie calibratie AHG9
- CU85 Glasvezel cursus
Prijs
2.249,39 € (1.859,00 € excl VAT) each
